SPR (Self-Piercing Riveting) Simulator
Explore how rivet length, die depth, die cavity diameter, rivet material yield strength, and rivet leg thickness affect interlock, remaining bottom thickness, and joining force in self-piercing riveted joints
Simulation Video

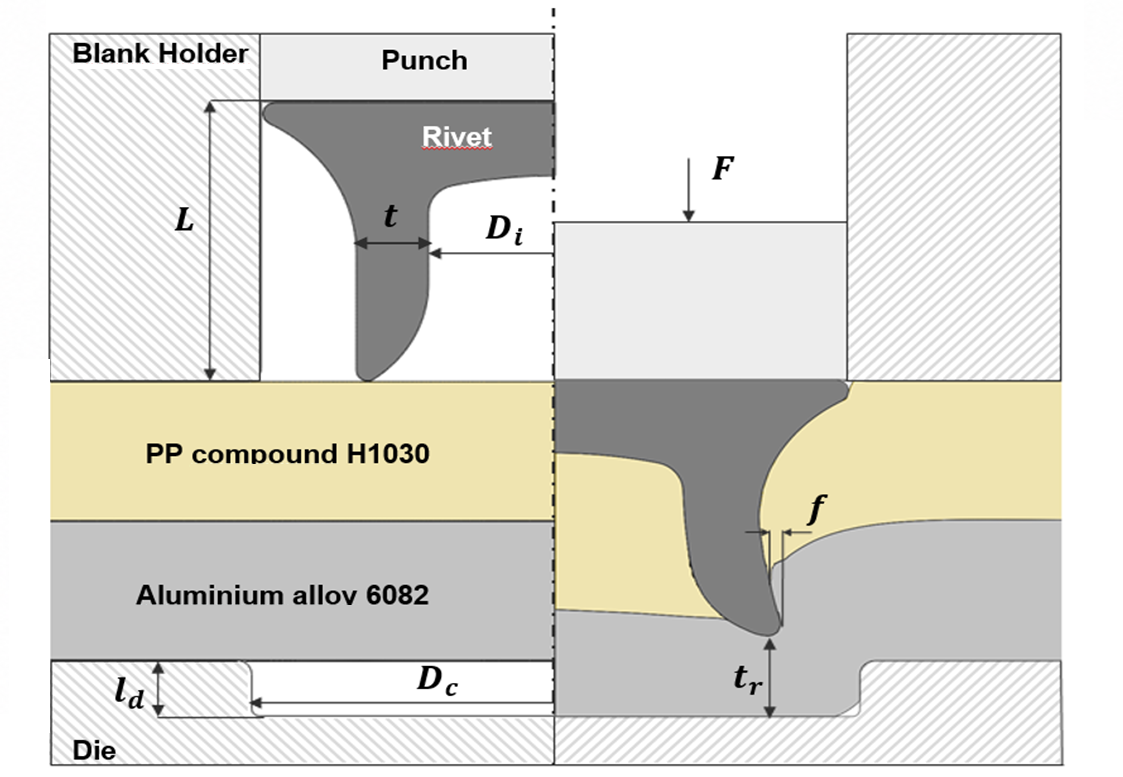

Click a parameter hotspot on the schematic to load a simulation.
Parameters
| Parameter | Optimum | Current Case |
|---|---|---|
| Rivet Length | 4 mm | — |
| Die Depth | 0.8 mm | — |
| Die Cavity Diameter | 8 mm | — |
| Rivet Material Yield Strength | 1520 MPa | — |
| Rivet Leg Thickness | 0.65 mm | — |
Comparison Panel
No simulations added yet. Select a parameter and case, then click Add to Compare.
